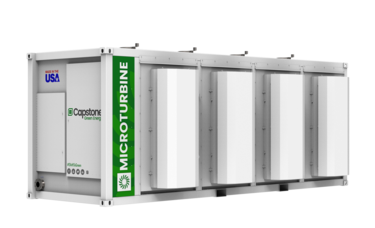

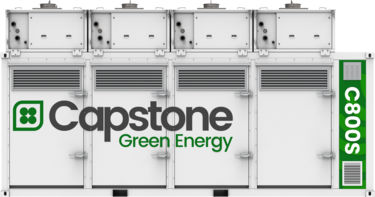

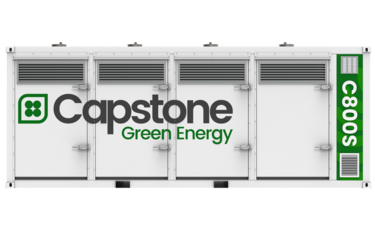

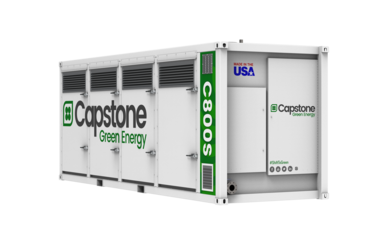

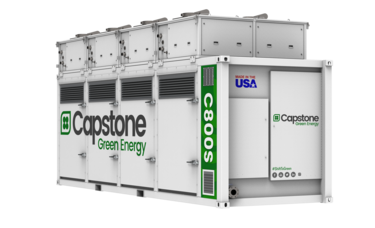

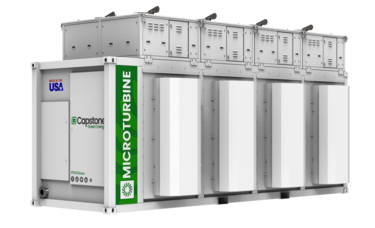

C800S

Expandable

Can be paralleled up to 30MW of power

800 kW
33%
Up to 90%
400-480 VAC
50/60 Hz, Grid Connect<br>10-60 Hz, Stand Alone
3-Phase, 4-Wire Wye
3.0 m (117 in)
7.5 m (295 in)
2.9 m (114 in)
Grid Connect – 14,100 kg (31,100 lbs); Dual Mode – 16,900 kg (37,300 lbs)
10.9 MJ/kWh (10,300 BTU/kWh)
280 ºC (535ºF)
5.3 kg/s (11.7 lbm/s)
Natural Gas, Liquid Fuels (Ultra Low Sulfur Diesel #2), Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG
